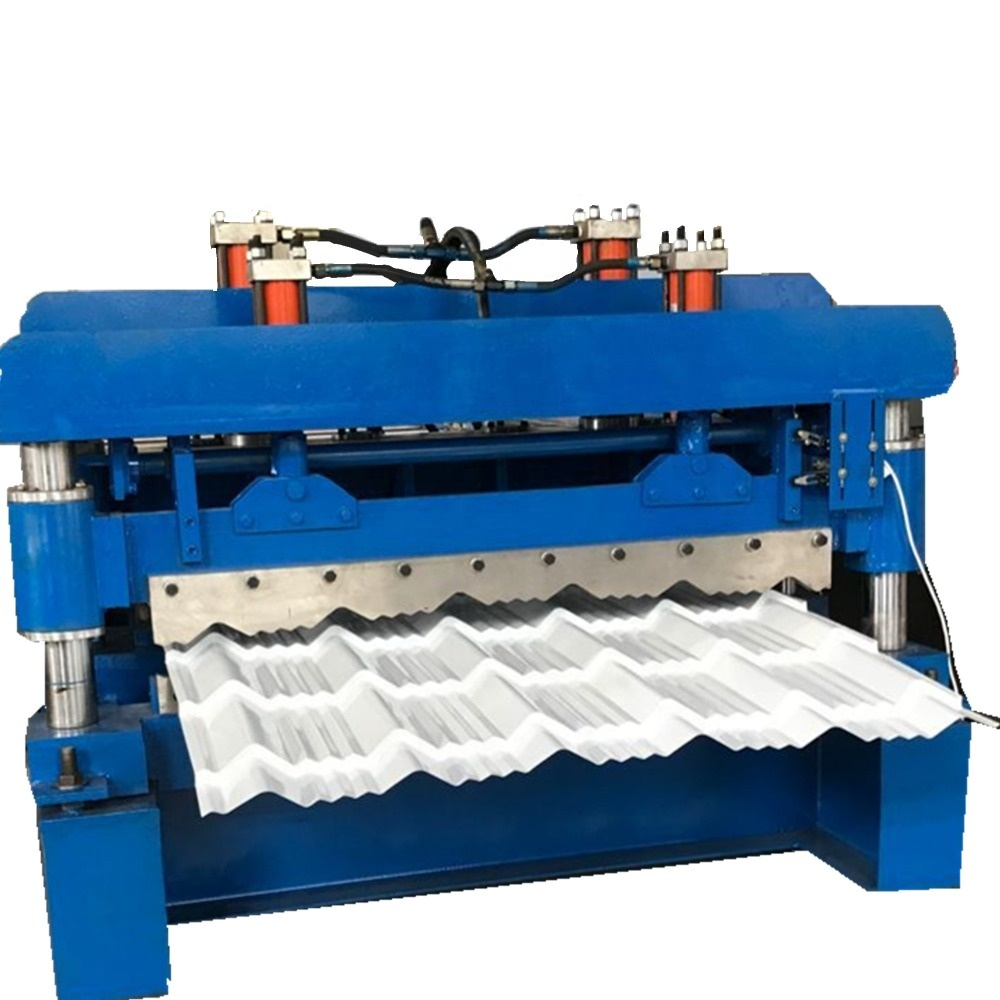

Glazed tile roofing sheet making machine with 3D effect

•

Glazed tile roofing sheet making machine with 3D effect

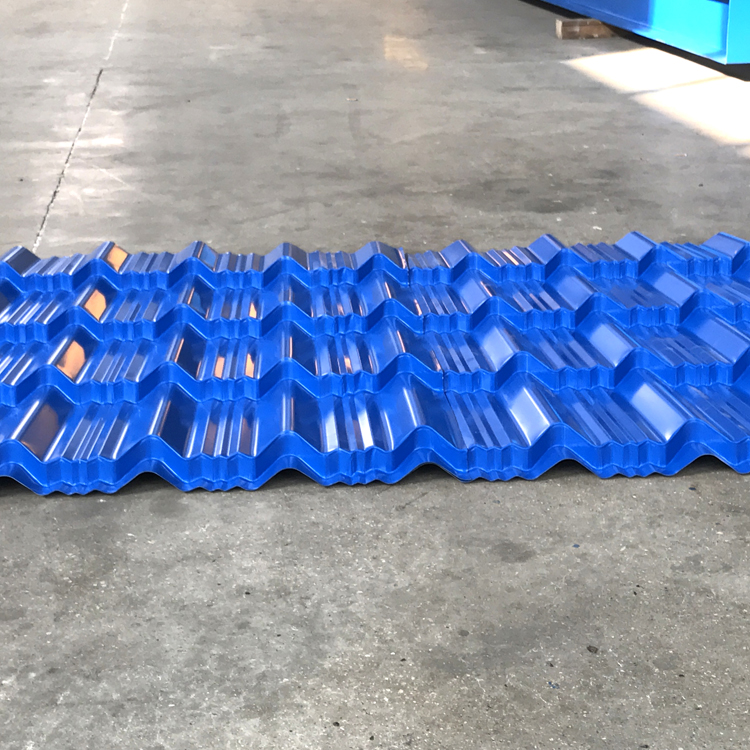

1.Glazed roofing sheet making machine with 3D effec it can help you control perfect 3D effect of the roofing. Compared with the normal roofing sheet machine, the glazed roofing tile making machine with one more step-formed mechanism.

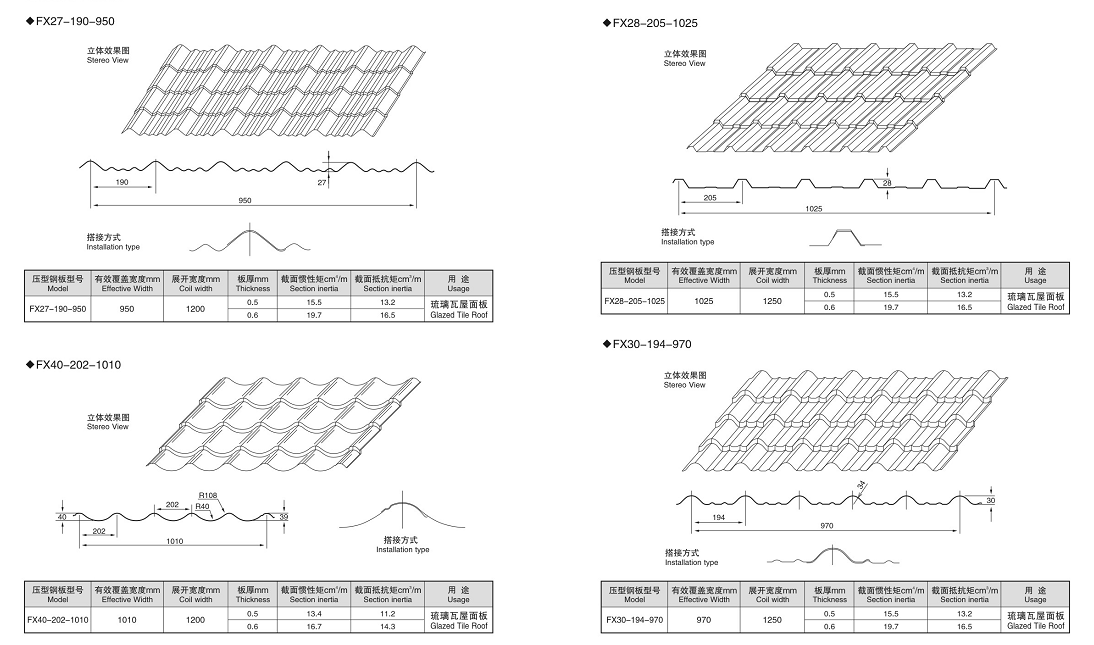

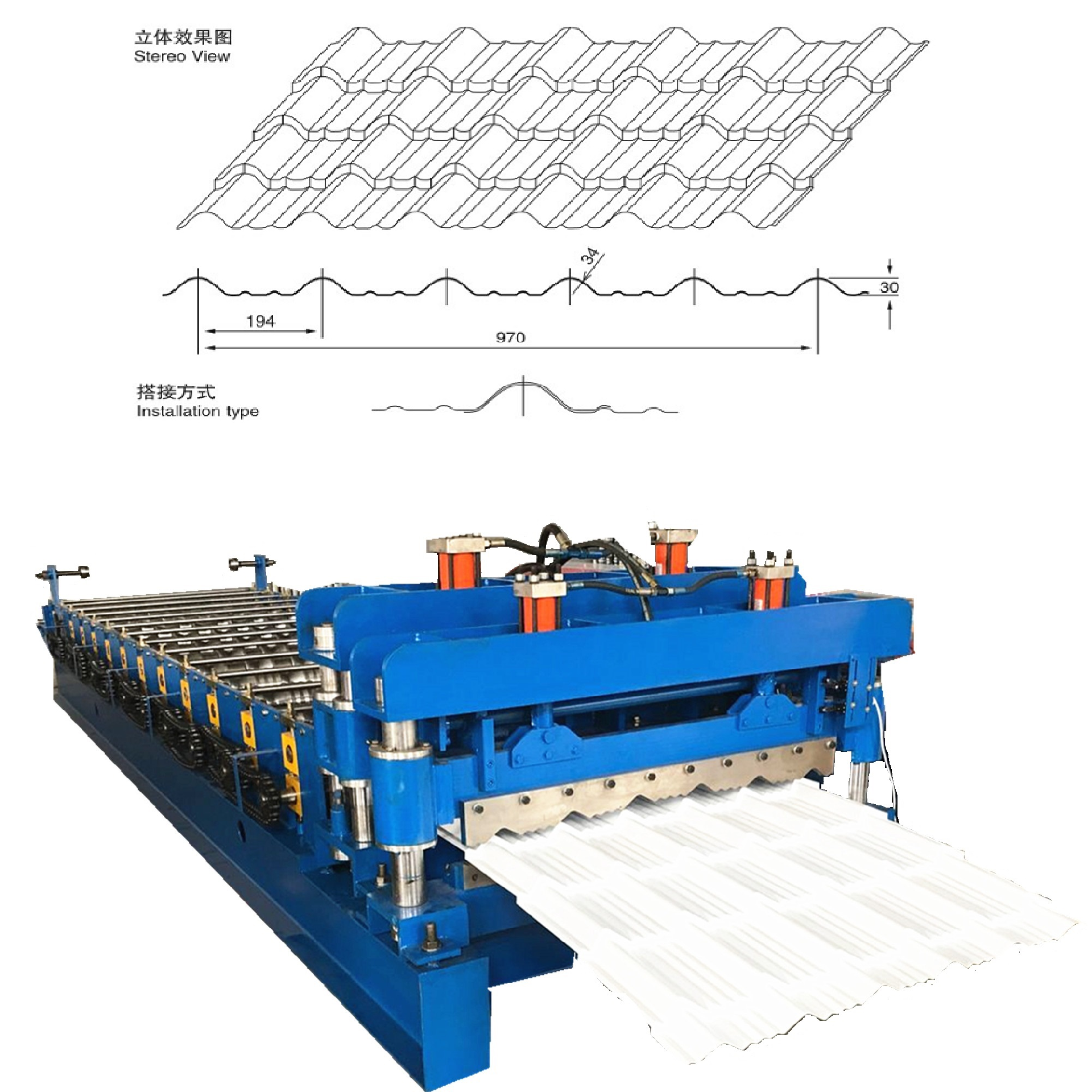

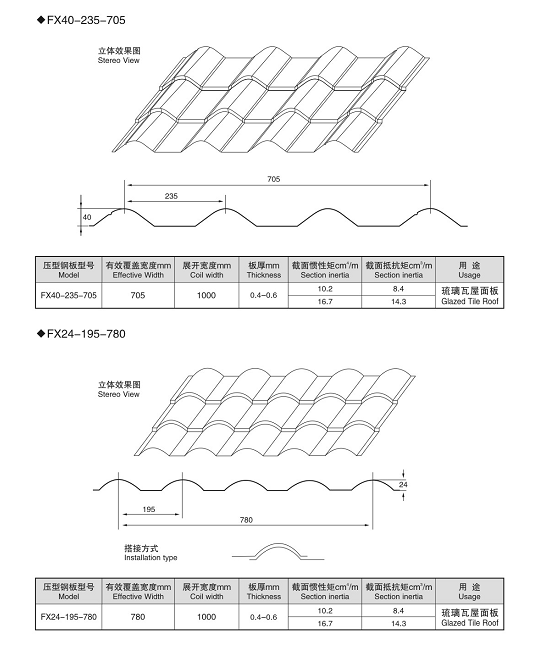

2. Profile drawings

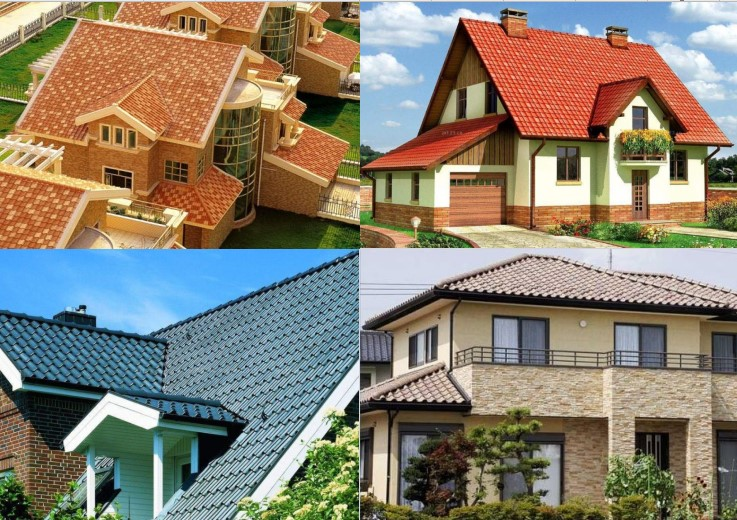

3.Application

4.Product parameters

Dimension: 8500*1500*1500mm

Weight: 4.5T

Total power: 11KW

Voltage : 380V/50HZ/3PH

Material: PPGL,PPGIGI,GL

Forming speed: 0-4m/min

Material thickness: 0.3-0.8mm



7.The component of the Glazed tile roofing sheet machine

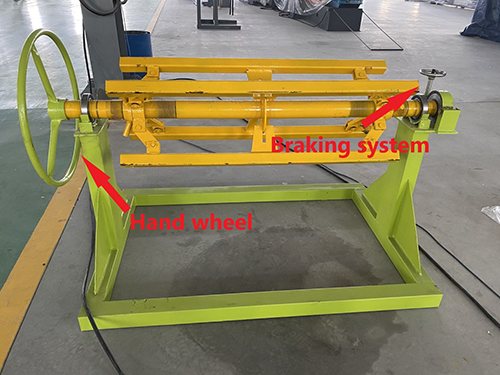

1.Manual decoiler (Hydraulic decoiler is also available)

Usage:It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming system

Loading ability:5T

Decoiling width:1250mm

Optional:fully automatic hydraulic decoiler

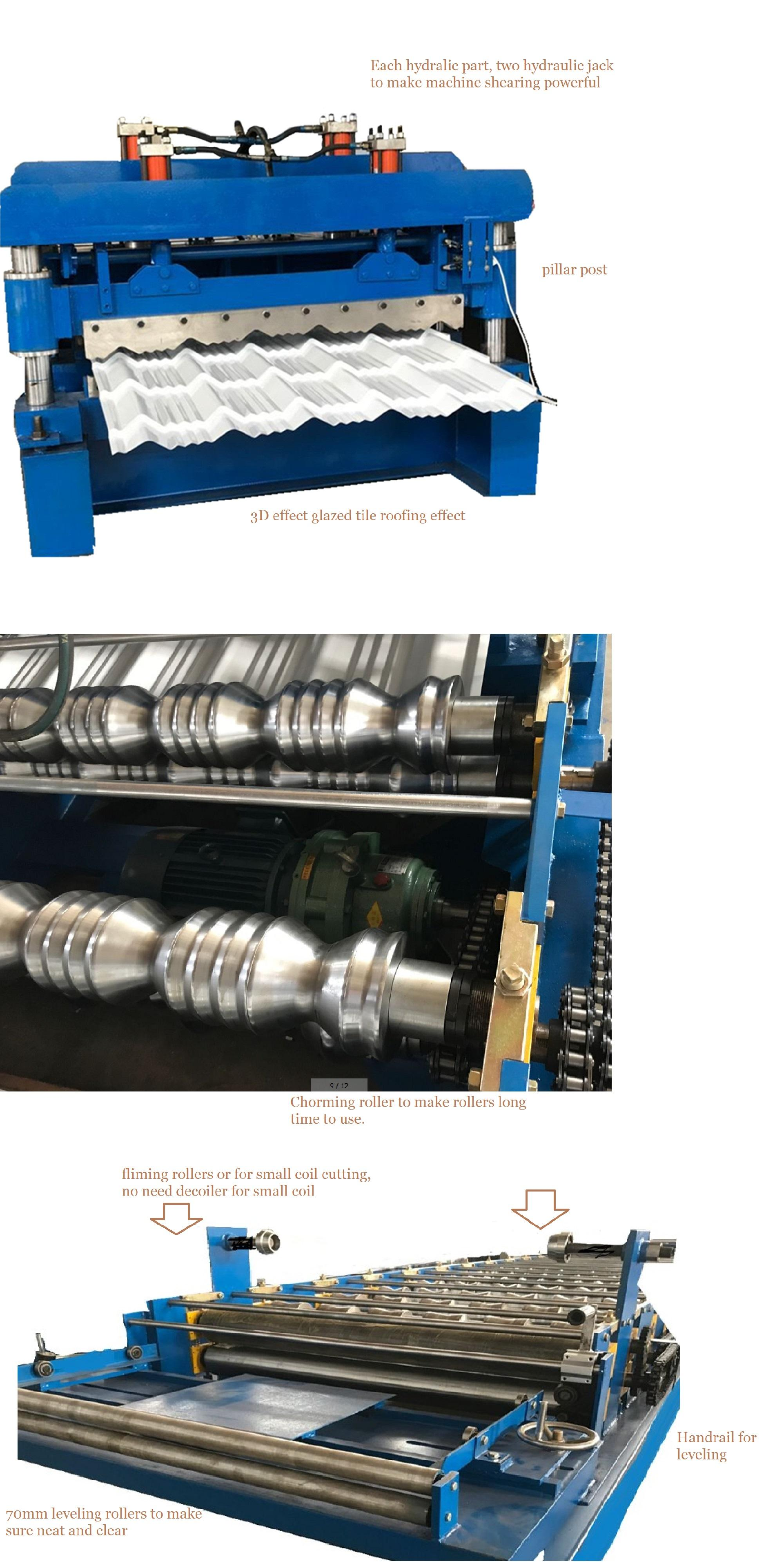

2.Main roll forming machine

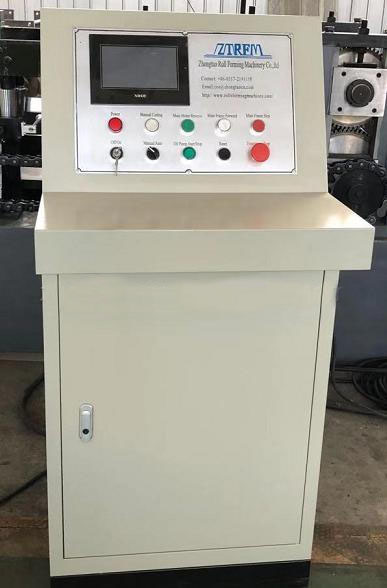

3.Control system

Control system: PLC

PLC brand: Delta from Taiwan

Frequency converter brand: Delta from Taiwan

Encoder: Omron

Function: Automatic control the length,quantity and batch
