Double layer roof wall machine
Save Space Double Layer Roofing Sheet Machine
1.Double layer roof wall machine can produce two or three types profile sheets, It's more cost effective than single layer machine and can save space and cost for you!

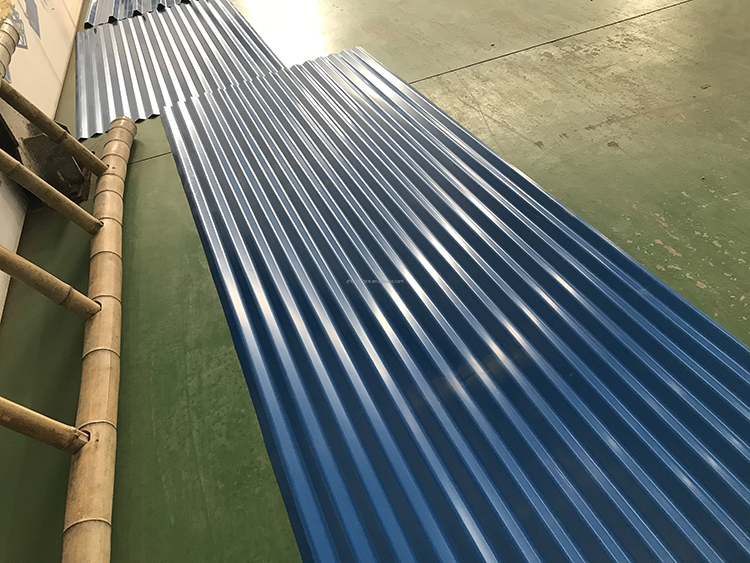

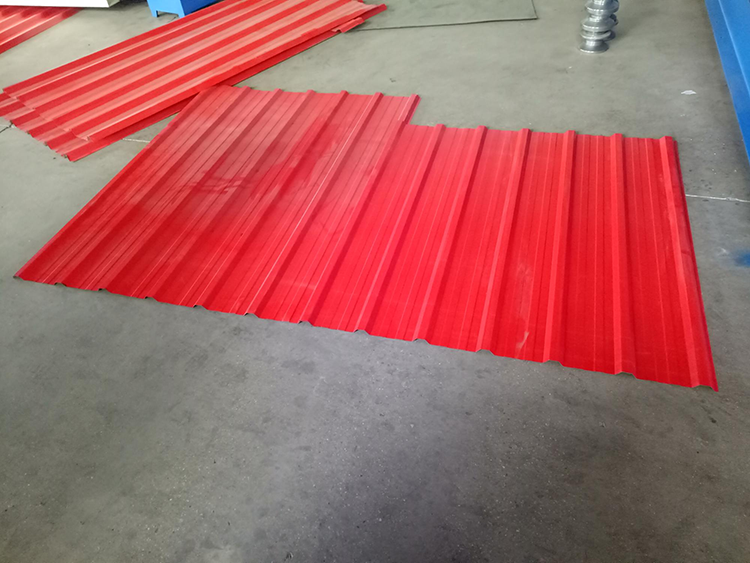

2.Finished product

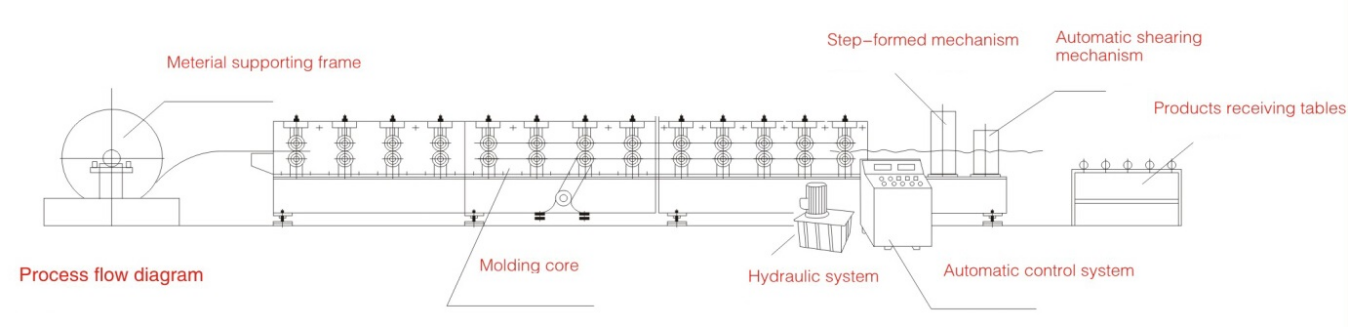

3.Process flow
4.The component of the double Layer Roofing Sheet Machine

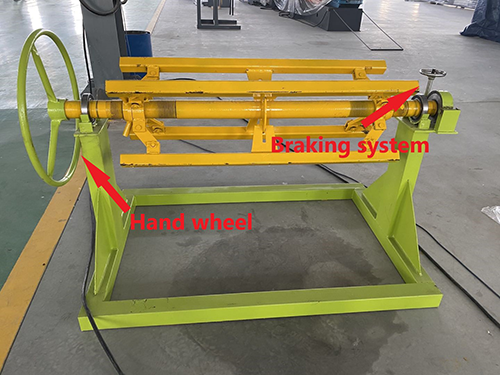

1.Manual decoiler (Hydraulic decoiler is also available)
This one is 5 ton manual decoiler.. There are still hydraulic decoiler.you can choose what you need hydraulic decoiler can improve the production efficiency by feeding the material automatic.
2.Hydraulic system

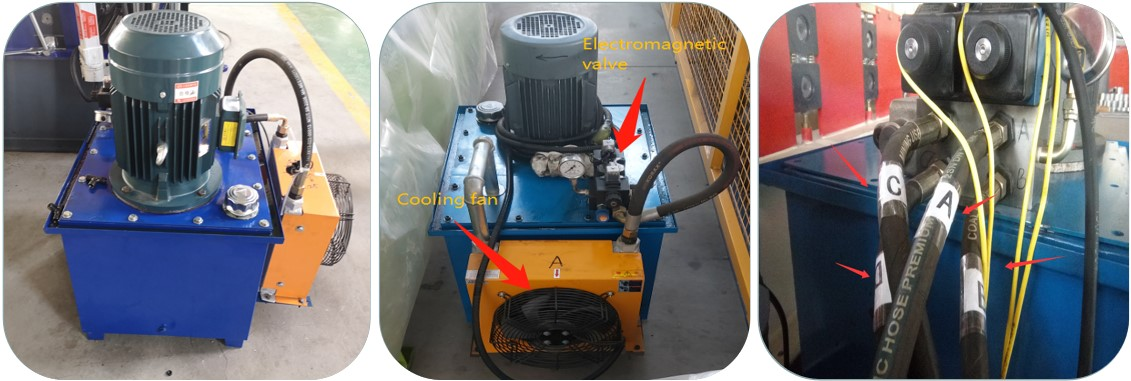

Using for punching holes/punching logo/cutting steel sheet need put hydraulic oil into the oil tank.

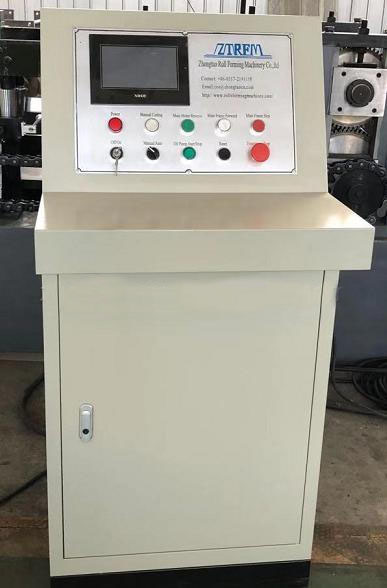

3. Control system
You can set the running speed/length/batch/pieces of the steel sheet on the PLC computer touch screen,Then the machine can running auto or you can choose the manual mode. The whole operation process are easy to understand.
Control system: PLC
PLC brand: Delta from Taiwan
Frequency converter brand: Delta from Taiwan
Encoder: Omron
Function: Automatic control the length,quantity and batch

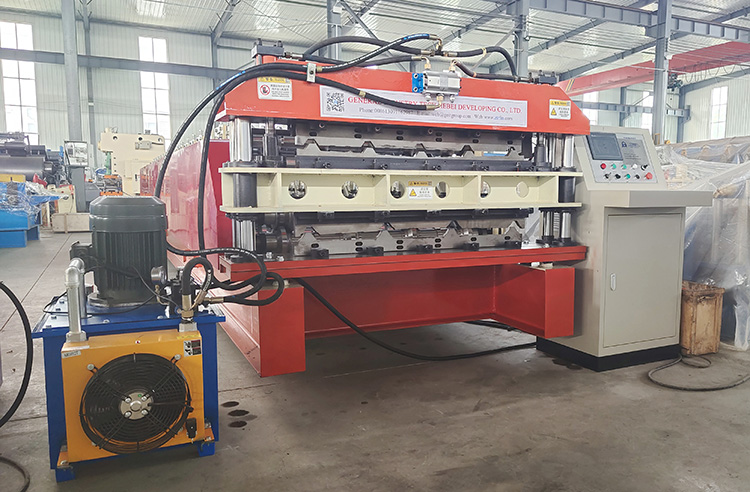

4.Main machine
The function of the main machine is roll forming the steel sheet to the profile customer the steel sheet to the profile customer want and then cut the steel sheet into piece.
The material of our roller is GCR15/CR12/CR12MOV,and our shaft and roller all be electroplate to keep from rust.
Machine size：9000*1500*1200mm
Machine weight：7000kg
Machine power：7kw
Hydraulic engine：3KW
Roll speed：8-10M/Min
Roll stations：14+16
Roller material：GCr15
Effective width：900mm
Feeding width：1m/1.2mm/1.22mm
Voltage：380V 60Hz 3PH/Customized
Material thickness：0.3-0.8/Customized
Control System：Schneider/Delta/Customized
