1.What is the application of corrugated roof roll forming machine?

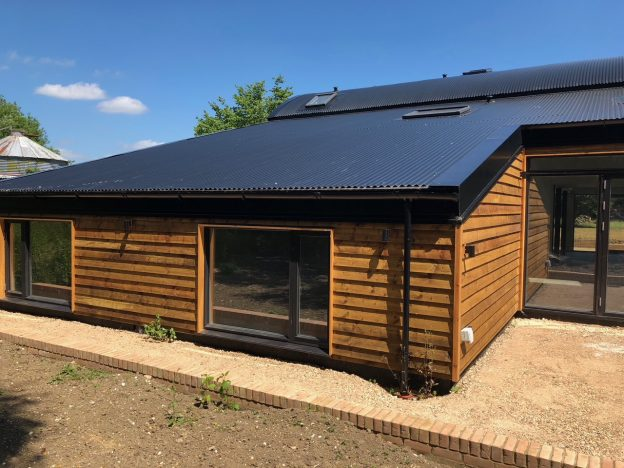

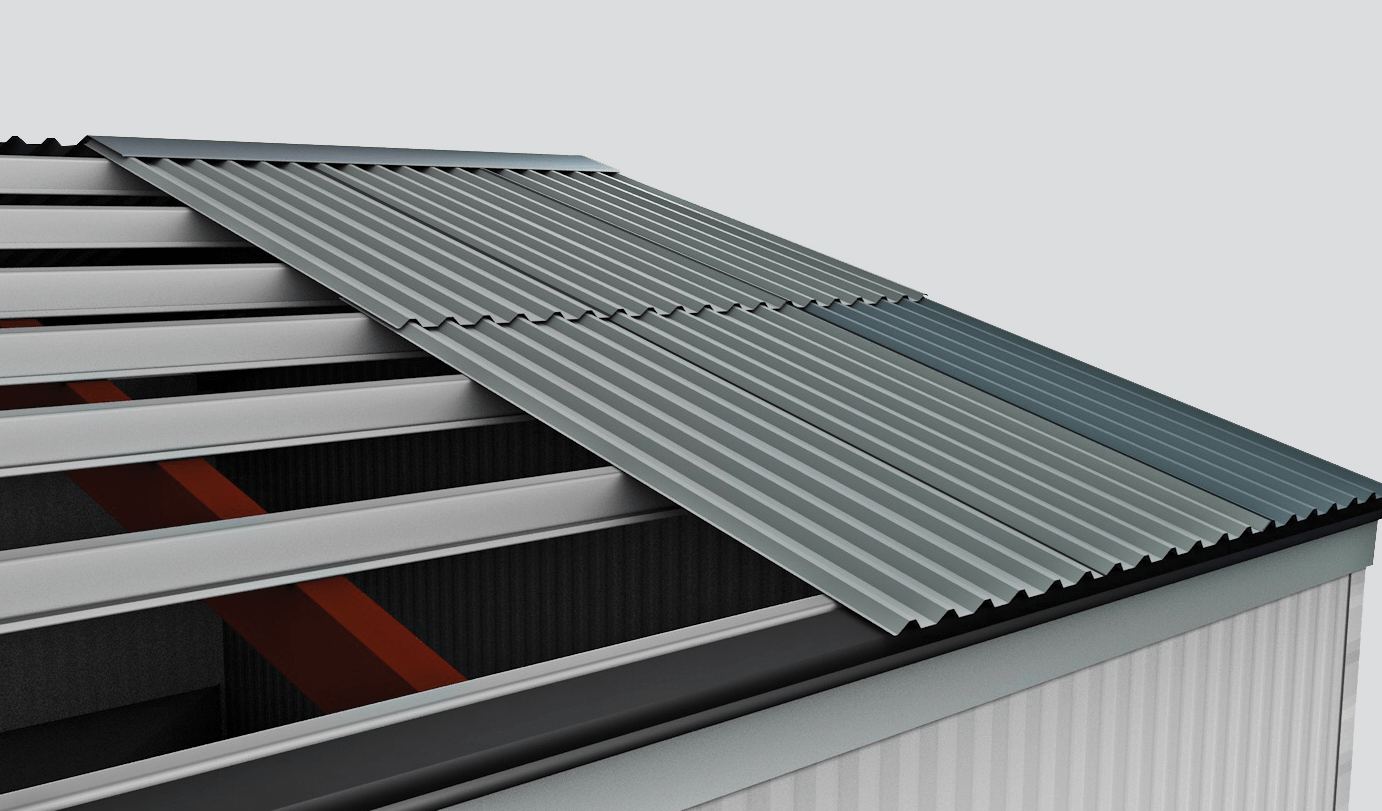

Corrugated roofing sheet making machine is mainly producing steel roof/ wall sheet .The final products have teo types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
The advantage of corrugated roof roll forming machine
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.the surface of the final product is very smooth and beautiful without any scratch on the surface.
3.customized:design the machine according to your specification and profile drawing.(for your reference)

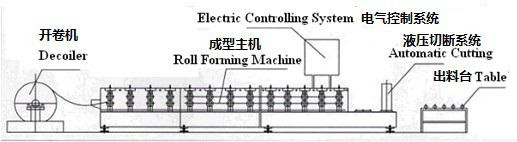

2.Process flow

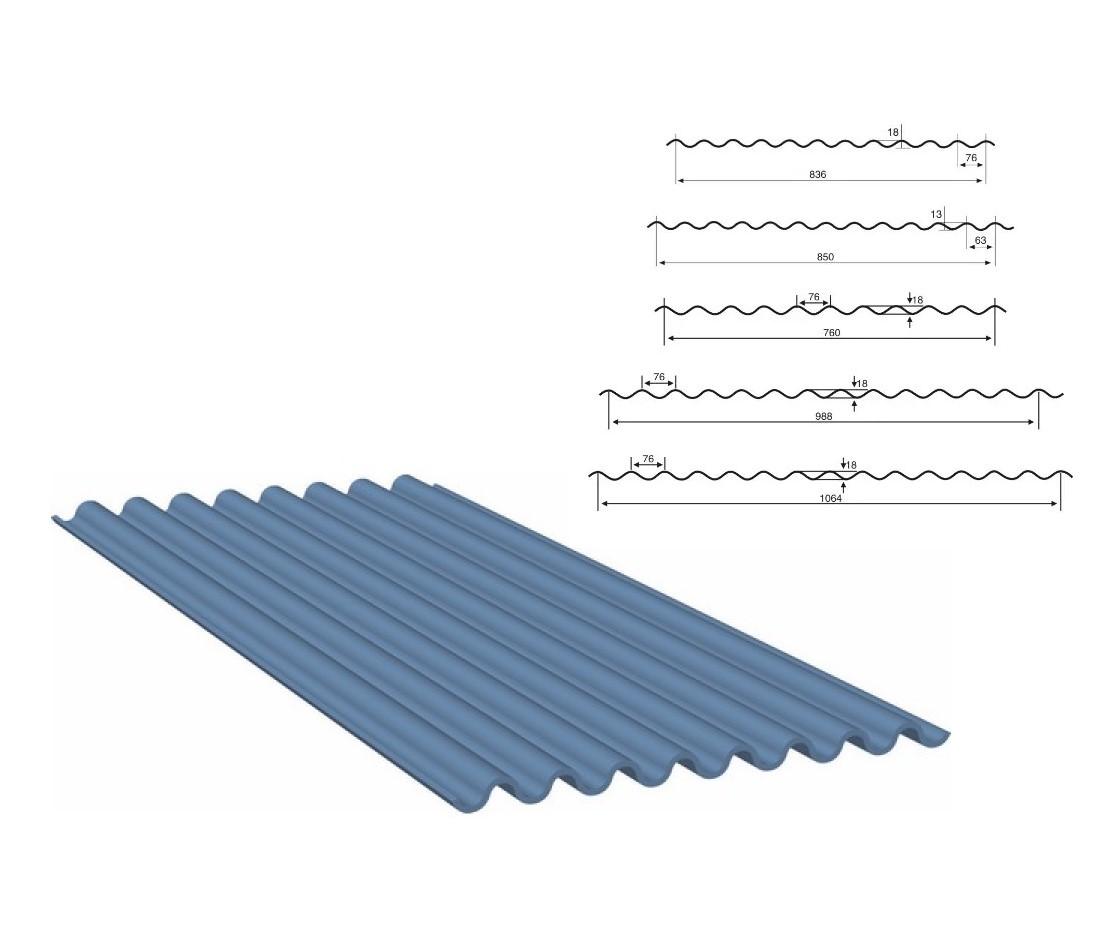

3.Profile drawing(we can design as customer's profile drawing):

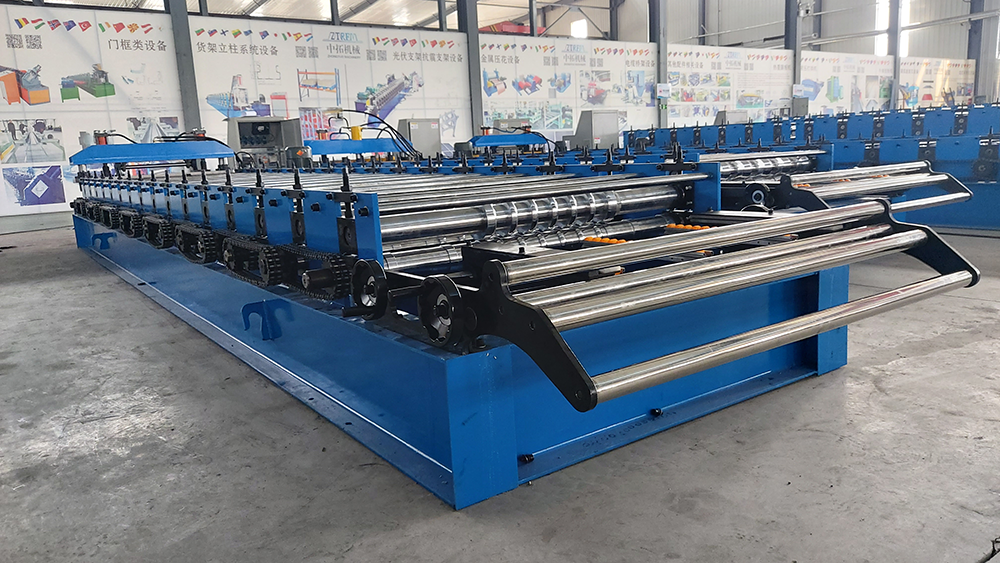

4. The component of the IBR Roofing Sheet Roll Forming Machine

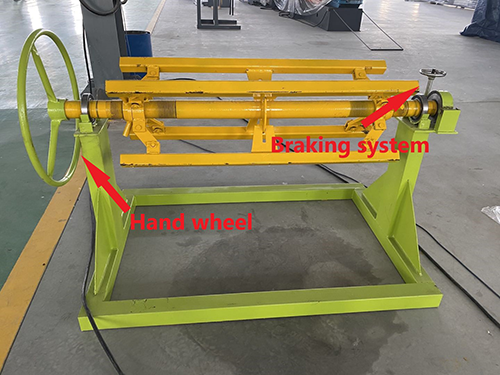

1..Manual decoiler (Hydraulic decoiler is also available)
Capacity: 5 tons /7 tons
Coil diameter: 450-550mm
Coil outer diameter: 1500mm
Coil width: 1200mm(as customers' profile drawing)

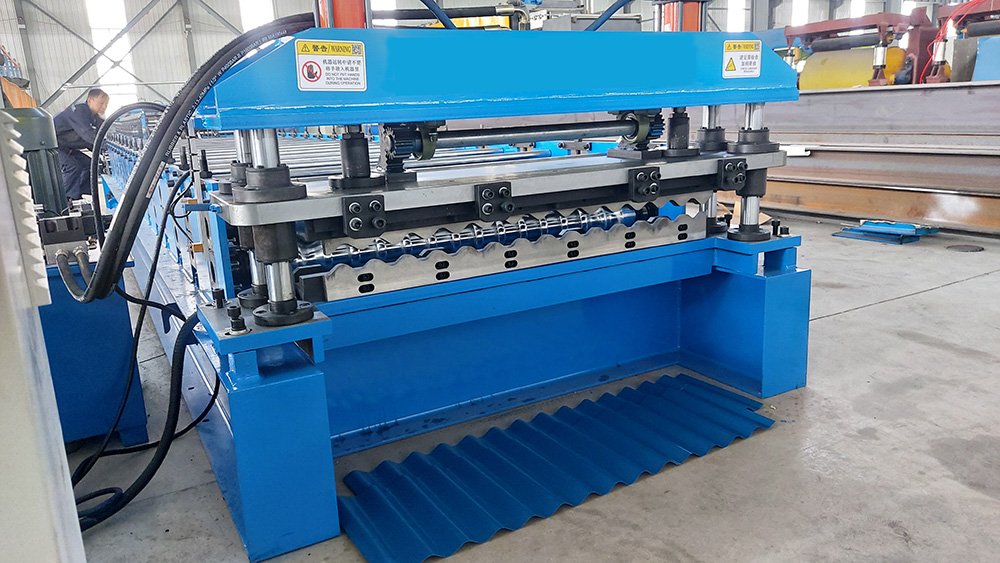

2.Main roll forming machine
Feeding device: with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
Machine body: 350H steel welded
Machine frame: 18mm middle plate welded
Roller station: 16 stations
Roller material: 45# steel with quenched treatment and hard chroming
Shaft diameter: 80mm,solid
Shaft material: 45# steel with tempering treatment
Motor power: 5.5 kw
Speed: 0-20m/min
Transmission: By Double chains
Voltage:380V,50HZ,3PH

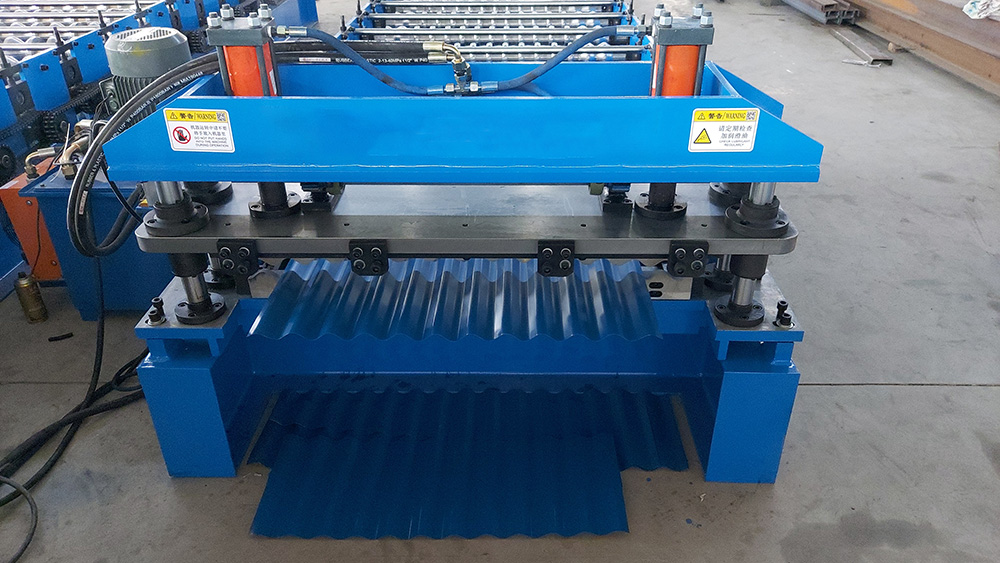

3.Hydraulic pressing cutting system
Blade material: Cr12,with quenched treatment
Hydraulic power: 4 kw
Cutting tolerance: +/-1 mm
Cooling system: With fan cooling
Pressing & Cutting type: Hydraulic
Feature: Low noise and high performance

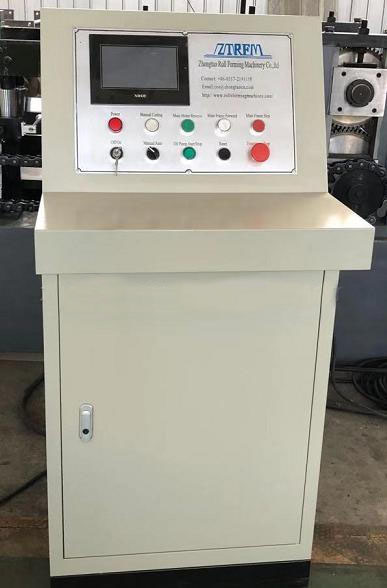

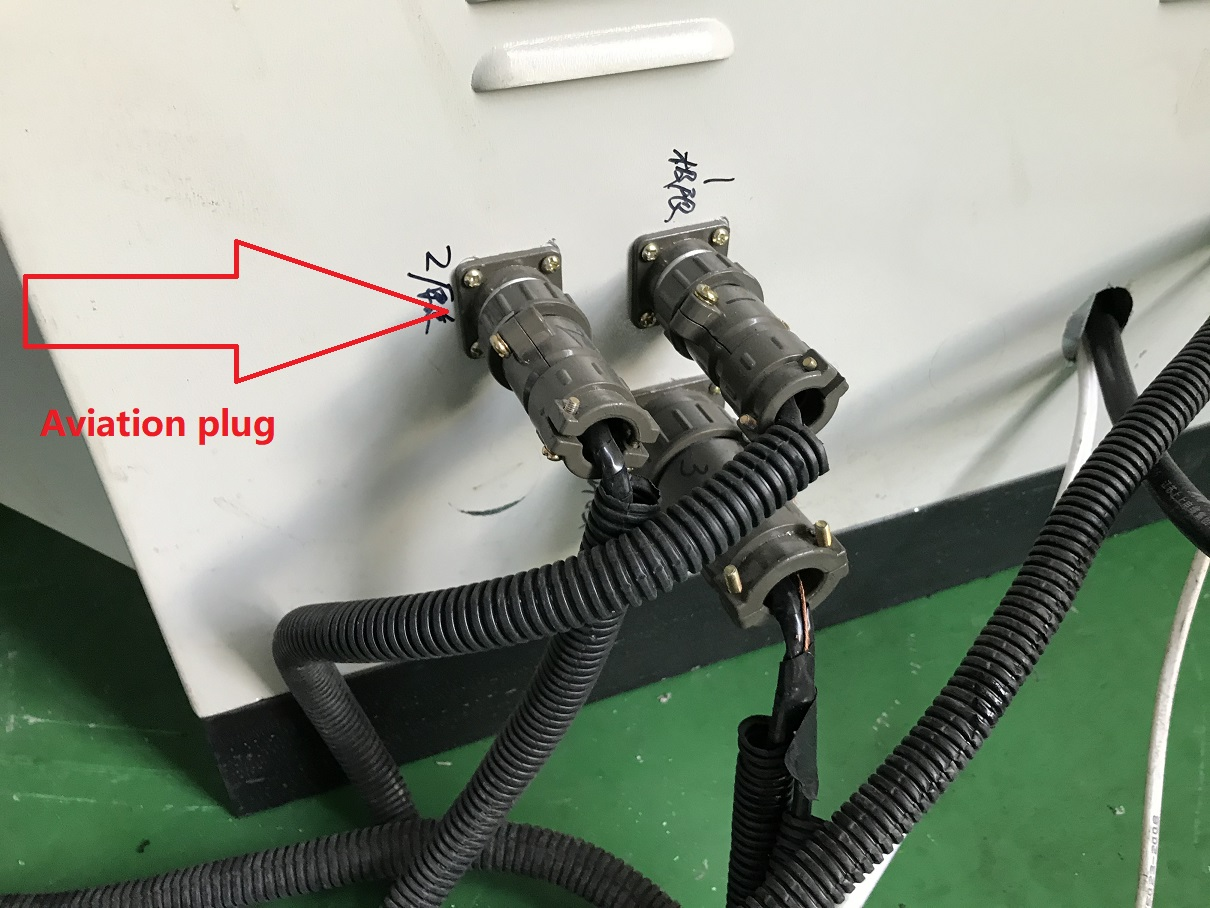

4.Control system
Control system: PLC
PLC brand: Delta from Taiwan
Frequency converter brand: Delta from Taiwan
Encoder: Omron
Function: Automatic control the length,quantity and batch

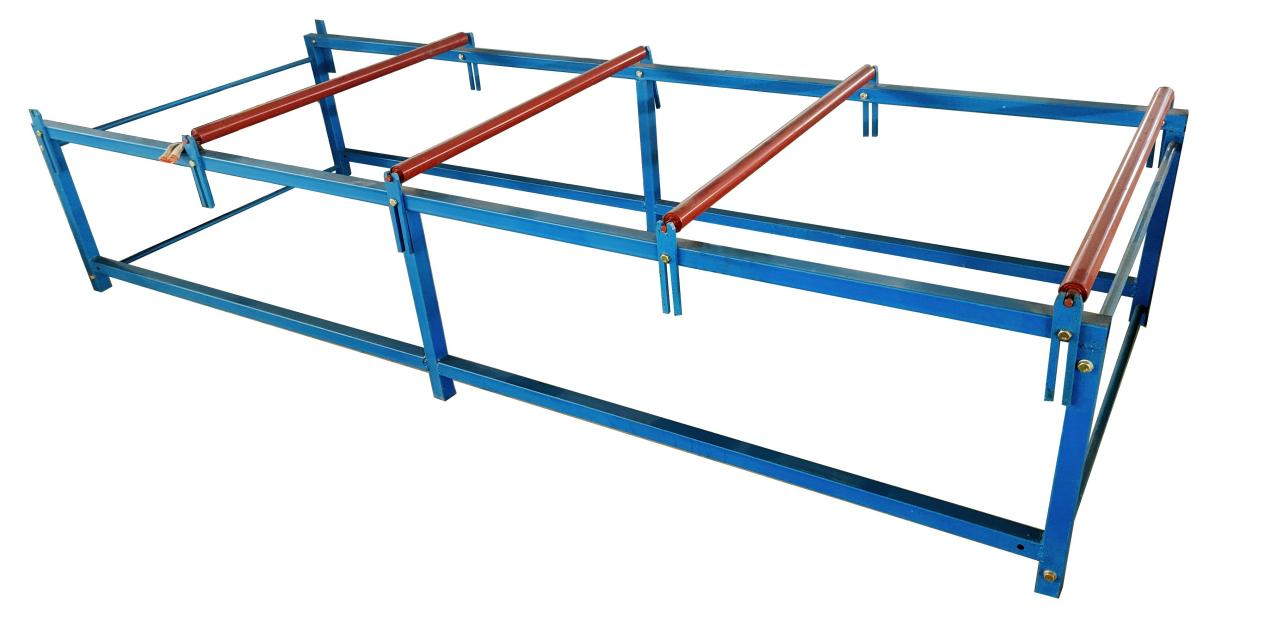

5. Prouduct receiving table
Length:3m
Width:1.25m
Material:square pipe welded
